Opis

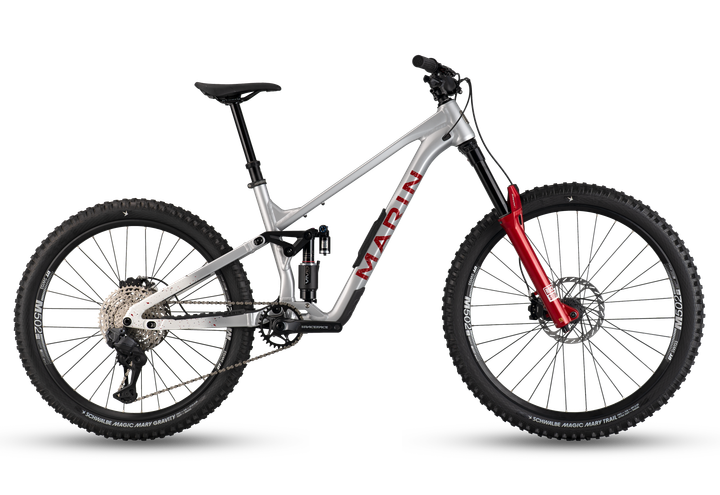

Marin Alpine Trail XR je vrhunsko enduro gorsko kolo za kolesarje, ki iščejo največjo zmogljivost na tehnično zahtevnih spustih, hkrati pa želijo učinkovito kolo tudi za vzpone. Novi aluminijasti okvir z vzmetenjem MultiTrac LT, 170 mm hoda spredaj in 160 mm zadaj zagotavlja odličen oprijem, stabilnost in samozavest na najzahtevnejših terenih.
Model XR odlikujejo vrhunske komponente, nastavljiva geometrija ter integriran predal Bear Box za shranjevanje osnovne opreme. Rezultat je hitro, zanesljivo in izjemno vsestransko enduro kolo, pripravljeno na dolge dni v gorah, bike parke ali enduro preizkušnje.
Tehnične specifikacije
| Okvir |
Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Sprednje vilice | RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset |
| Zadne vzmetenje |
RockShox Vivid Air Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune |
| Obroči |
DT Swiss M502, 29mm Inner, 32H |
| Zadnja pesta |
DT Swiss 370 Classic, 148x12mm, 6-Bolt Disc, Mircro Spline Driver, 32H |
| Prednja pesta |
DT Swiss 370 Classic, 110x15mm, 6-Bolt Disc, 32H |
| Napere |
14g Black Stainless Steel |
| Plašči |
Front: Schwalbe Magic Mary, Trail, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Albert, Trail, Soft, Radial, 27.5x2.5" |
| Zadnji menjalnik |
Shimano Deore Di2, 12-Speed, SGS |
| Prednji menjalnik | - |
| Prestavne ročice |
Shimano Deore Di2, 12-Speed |
| Gonilke |
RaceFace Affect, 32T, 55mm CL, 165mm |
| Gonilni ležaj | RaceFace, 24mm Spindle, BSA Threaded |
| Veriga | KMC X-12 Silver and Black |
| Verižnik | Shimano Deore M6100 MS |
| Prednje zavore |
SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm RotorTRP Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor |
| Zadnje zavore | SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor |
| Zavorne ročice |
SRAM Maven Silver |
| Krmilo | PNW Range Handlebar, 38mm Rise, 38mm Clamp, 800mm Width, 5 Degree Up, 10 Degree Back |
| Nosilec krmila |
All New Marin CNC, 35mm Length, 35mm Bar Bore |
| Grips |
Marin Grizzly Lock-On |
| Krmilni ležaj |
FSA Custom Headset, Adjustable HTA Design |
| Sedežna opora |
PNW Loam Post with Range Lever, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm |
| Sedež |
Marin Speed Concept |
| Pedala | - |
